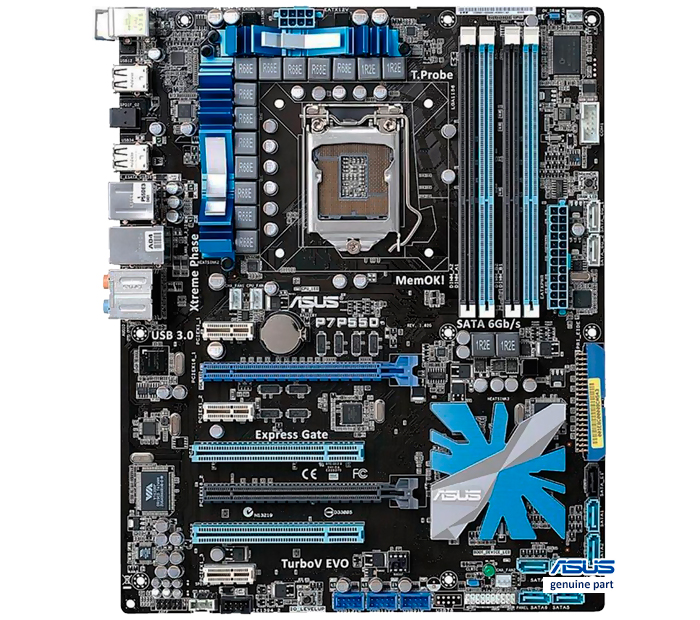

motherboard Asus P7P55D socket LGA 1156 Chipset P55
original
PN: P7P55D-E | P7P55D
CPU Socket: LGA 1156/Socket H
Graphics Card Interface: PCIe v2.x
processor socket: LGA 1156 (Socket H)
memory compatible: PC3-8500 and PC3-10600
memory slots: 4 Non-ECC
max memory: 16Gb
storage controllers: RAID levels 0, 1, 5, 10
USB 2.0 connectors: 3
SATA connectors: 7
PATA connectors: 1
S/PDIF out connector: 1
CPU Compatible Make: Intel
CPU Chipset: P55
Form Factor: ATX
Onboard GPU: no:
Max RAM: 16 GB DDR3
PCI Slots: 4 x PCIe x1 v2.0, 1 x PCIe x16 v2.0
RAM Slots: 4 x DDR3 SATA 1.0: 0:
Memory Channels, compatible RAM Speeds: DDR3 1066 MHz, DDR3 1333 MHz, DDR3 1600 MHz
2 SATA 2.0 x6
USB 2.0 Internal Slots: 6 RAID Support: yes
USB 2.0 Rear: 6 Internal I/O
1 x 24 pin power connector
1 x 8 pin power connector
1 x S/PDIF connector
1 x IDE connector
System Panel Connection
USB 3.0 Rear: 2x
Back Panel I/O: Line In Connector; Mic In connector; 7.1 Surround Sound; Audio Input Output; PS/2 keyboard connector; PS/2 mouse connector; 1 x eSATA
Produto original testado usado com garantia
|
