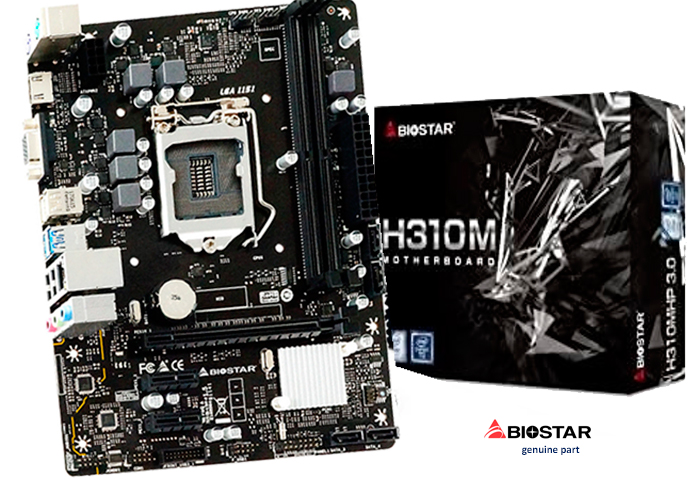

motherboard Biostar H310MHP 3.0 socket 1151 cpu intel 8ª e 9ª gerações DDR4 OEM original
Biostar H310MHP 3.0 motherboard socket 1151 DDR4 OEM genuine
PN: H310MHP
motherboard Biostar H310MHP 3.0 skt 1151 DDR4 OEM specs:
chipset: Intel H310, arquitetura single chip
cpu: suporta intel® Core™ processadores 9ª e 8ª gerações (Intel® Core, Pentium e Celeron cpu); maximum CPU TDP (Thermal Design Power): 95Watt
memoria: 2x Dimm DDR4 memory slot, max. supports up to 32 Gb; dual channel DDR4 1866 / 2133 / 2400 / 2666* each DIMM supports non-ECC 4Gb, 8Gb, 16Gb DDR4 module
GPU: com o CPU model supports DX12
suporta HDCP 4 x SATA III Connectors (6Gb/s)* specifications varia mediante tipos CPU
Lan: chip RTL8111H, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
HD audio: audio CODEC ALC887: 7.1 channels, High Definition Audio
4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header)
6x USB 2.0 port (4 on rear I/Os and 2 via internal header)
slots internas de expansão:
2x PCIe 2.0 x1 Slot
1x PCIe 3.0 x16 Slot
slots externas de expansão: REAR I/O
1x PS/2 mouse port specs:
1x PS/2 Keyboard port
1x HDMI port
1x VGA port
1x LAN port
4x USB 2.0 port
2x USB 3.2(Gen1) port
3x audio Jack
slots I/O specs:
4x SATA III Connector
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x system Fan Connector
1x front Panel Header
1x front Audio Header
1x clear CMOS Header
1x COM port Header
dimensions micro ATX form factor: 226mm x 171mm ( W x L )
OS supports: Windows 7 (x32 / x64) / Windows 10 (64bit) / Windows 11 (64bit)
hardware asso ries:
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
inclui: 1x motherboard Biostar H310MHP 3.0 socket 1151 DDR4 OEM original
bom estado como novo e 100% funcional, produto origem controlado OEM, testado e com garantia
※please refer to www.biostar.com.tw for memory support list, Biostar
|
